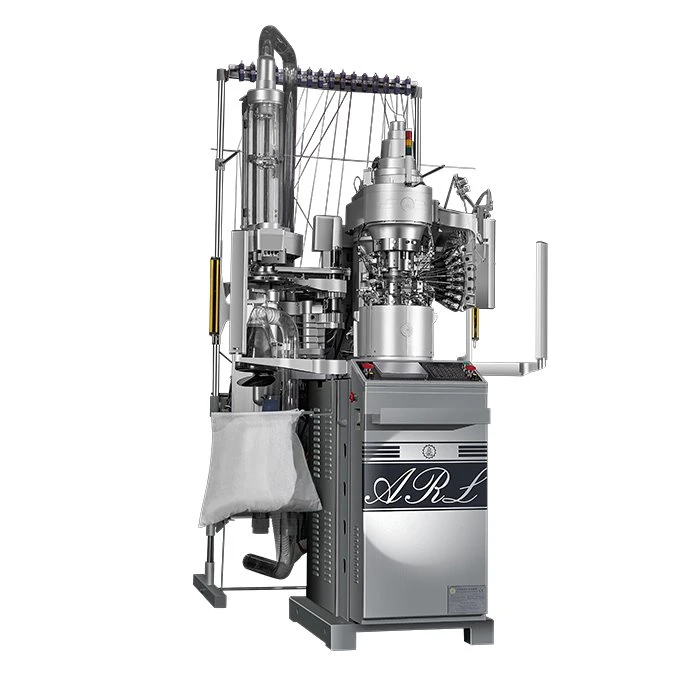

Ib Pub 4 Nti Tsis Siv Neeg Txuas Socks Knitting Tshuab

F-601 Lub tshuab computer tsis siv neeg txuas cov thom khwm knitting tshuab, muaj peev xwm tsim cov thom khwm, tav, picotwelt, ob xim elastic, multilayer tav sab saum toj thiab tucking plooj, thiab tuaj yeem ua ntau hom thom khwm. Ib lub tshuab pub thom khwm muaj peev xwm ua rau ib qho xim ntawm tib kab. Kev sib txuas tshuab rau thom khwm yog yooj yim rau kev saib xyuas thiab khav theeb kev ua haujlwm ruaj khov, thiab kev tsim khoom siab, thiab siv Internet ntse tshuab nyiaj ntsuab los ua kom tiav tag nrho cov hosiery weaving, hosiery tig, xaws thiab lwm yam txheej txheem hauv ib lub tshuab, uas pom cov txheej txheem ntau lawm.

Technical feature:

1. Drumless, tag nrho tsis siv neeg hluav taws xob tswj qhov system;

2. Electro-pneumatic yam ntiv tes, ntsia liaj qhov rooj cams tswj;

3. Ac servo lub cev muaj zog thiab tsav tsheb;

4. Cov khoom nyob rau hauv ib lub voj voog ntawm 1 xim, mus txog 6inter xim nyob rau hauv tag nrho;

5. Kev txhawb nqa rau pob taws;

6. Ntau yam sensor rau obstacles (xov paj inlet, xov paj txiav, defected koob, selector txiav, hluav taws xob teeb meem);

7. Tsis siv neeg lubricant ntaus ntawv;

8. Hluav taws xob-pneumatic cam, khaws thiab khaws cia;

9. Tsis siv neeg tig lub thom khwm ntaus ntawv;

10. "Y" lossis "W" cov ntaub ntawv ntawm pob taws;

11. Kev sib cais ntawm cov thom khwm mus rau hauv qab kev taw qhia thiab tsis siv neeg tig cov thom khwm; (Qhov kev ua haujlwm no tuaj yeem siv yam tsis muaj ntiv taw kaw);

12. Independent automatic alignment head device.

Lub computer system rau tag nrho cov computerized thom khwm knitting tshuab:

1. HDD: 10GB saum toj no

2. Ram: 128MB saum toj no

3. Vga Ram: 16 MB saum toj no

* Cov yam ntxwv tuaj yeem hloov pauv yam tsis tau ceeb toom rau lub tshuab txhim kho

Cov yam ntxwv ntawm cov qauv tsim system:

1. Ntau hom lus tso tawm rau ntawm LCD

2. USB system

3. High efficiency thiab meej actuator (8 kauj ruam)

4. Kev ntsuas tus kheej ntawm tus actuator

5. Kev ntsuas tus kheej ntawm txhua qhov ua haujlwm hluav taws xob

6. Ib qho qauv xaiv

7. Zaub ntawm kev tsim khoom

8. Khaws cov qauv tsim & style (Chain data)

Specifications:

Lub tog raj kheej taub: 4 nti

Koob ntau: 108N ~ 176N

Kev hloov pauv: 260rpm ~ 320rpm

Lub cev muaj zog: 6.5Kw

Actuator: 5.5-6Piezo hluav taws xob ceramic actuators

Fais fab mov: 3P-AC 220V ~ 380V 50/60Hz

Tshuab Loj: (L) 100cm X (W) 160cm X (H) 235cm

Ntim Loj: (L) 120cm X (W) 125cm X (H) 200cm

Net nyhav: 500Kg

Qhov hnyav tag nrho: 600Kg

* Kev tsim khoom thiab RPM tuaj yeem hloov kho los ntawm cov khoom sib txawv

FAQ:

Q: Yuav ua li cas daws cov teeb meem khoom siv thaum siv?

A: Thov xa email rau peb txog qhov teeb meem nrog cov duab lossis video me me yuav zoo dua, peb yuav pom qhov teeb meem thiab daws nws. Yog tias tawg, peb yuav xa koj qhov tshiab dawb yog nyob rau lub sijhawm lav.

Q: Koj puas yog cov chaw tsim khoom, tuam txhab lag luam lossis ib tus neeg thib peb?

A: Peb yog cov chaw tsim khoom, thiab peb tau tsim peb lub tuam txhab txij li xyoo 2003

Q: Koj lub Hoobkas nyob qhov twg?

A: Peb lub Hoobkas chaw nyob yog: No.202, Tashan Road, Fotang Town, Yiwu City, Suav.

Peb Qhov Kev Pabcuam

1. Muab cov qauv tsim thiab kev daws teeb meem;

2. Kev taw qhia kev cog ntoo tshiab;

3. Tsim thiab tsim cov khoom siv tsis yog qauv;

4. Kev cob qhia kev cob qhia thiab kev cob qhia ntawm qhov chaw raws li daim ntawv cog lus;

5. Muab khoom siv rau txhua lub sijhawm;

6. Tele-technical kev sab laj thiab kev pabcuam;

7. Lwm cov kev pabcuam tshwj xeeb raws li tus neeg siv khoom xav tau.
