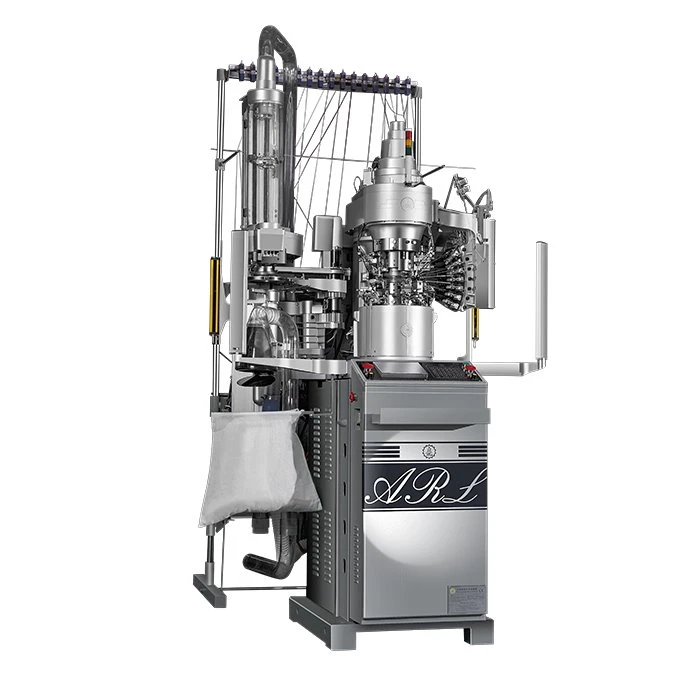

Ntau Muaj nuj nqi Ob lub tog raj kheej thom khwm Hosiery tshuab

F-601 4 ntiv tes ntau txoj haujlwm thom khwm hosiery tshuab, muaj peev xwm tsim tau yooj yim, tav, txuas-txuas, ob xim elastic, multilayer tav saum thiab tucking kev ntxhib los mos. Cov thom khwm ntau lawm tshuab muaj peev xwm xaws ib xim ntawm tib kab. 7 kev sib txuas ntawm yam feeder hauv cov xim sib txawv tuaj yeem ua haujlwm tsis tu ncua alternating knitting.

Aurora, lub tuam txhab kev tsim kho tus kheej muaj cov pab pawg R & D zoo heev. Peb caw ntau tus neeg laus Kauslim thiab cov kws tshawb fawb hauv tsev los muab lawv cov thev naus laus zis siab thiab koom tes nrog cov chaw tshawb fawb tshawb fawb thiab cov tsev kawm qib siab. Tag nrho cov no tau muab lub zog tsav tsis kawg kom ua tiav cov thev naus laus zis tshiab. Lub tuam txhab tau mob siab rau lawv qhov kev ua tiav R & D tshiab dhau los hauv kev sim rau kev ua lag luam kom hloov mus rau kev tsim khoom. Txawm hais tias tsis tu ncua kev tsim kho tshiab thiab kev hloov kho, kev lag luam hosiery ua tshuab tsim los ntawm nws tus kheej los ntawm lub tuam txhab tsis yog qis dua lwm yam hosiery ua tshuab hauv cov nroog tsim thiab lawv tseem zoo dua ntawm nws qhov ceev thiab lwm yam haujlwm. Nws yog ib tug thawj coj ntawm Suav hosiery manufacturing tshuab manufacturers.

Technical feature:

1. Drumless, tag nrho tsis siv neeg hluav taws xob tswj qhov system;

2. Electro-pneumatic yam ntiv tes, ntsia liaj qhov rooj cams tswj;

3. Ac servo lub cev muaj zog thiab tsav tsheb;

4. Cov khoom nyob rau hauv ib lub voj voog ntawm 1 xim, mus txog 6inter xim nyob rau hauv tag nrho;

5. Kev txhawb nqa rau pob taws;

6. Ntau yam sensor rau obstacles (xov paj inlet, xov paj txiav, defected koob, selector txiav, hluav taws xob teeb meem);

7. Tsis siv neeg lubricant ntaus ntawv;

8. Hluav taws xob-pneumatic cam, khaws thiab khaws cia;

9. Tsis siv neeg tig lub thom khwm ntaus ntawv;

10. "Y" lossis "W" cov ntaub ntawv ntawm pob taws;

11. Kev sib cais ntawm cov thom khwm mus rau hauv qab kev taw qhia thiab tsis siv neeg tig cov thom khwm; (Qhov kev ua haujlwm no tuaj yeem siv yam tsis muaj ntiv taw kaw);

12. Independent automatic alignment head device.

Cov yam ntxwv ntawm cov qauv tsim system:

1. Ntau hom lus tso tawm rau ntawm LCD

2. USB system

3. High efficiency thiab meej actuator (8 kauj ruam)

4. Kev ntsuas tus kheej ntawm tus actuator

5. Kev ntsuas tus kheej ntawm txhua qhov ua haujlwm hluav taws xob

6. Ib qho qauv xaiv

7. Zaub ntawm kev tsim khoom

8. Khaws cov qauv tsim & style (Chain data)

Specifications:

Lub tog raj kheej taub: 4 nti

Koob ntau: 108N ~ 176N

Kev hloov pauv: 260rpm ~ 320rpm

Lub cev muaj zog: 6.5Kw

Actuator: 5.5-6Piezo hluav taws xob ceramic actuators

Fais fab mov: 3P-AC 220V ~ 380V 50/60Hz

Tshuab Loj: (L) 100cm X (W) 160cm X (H) 235cm

Ntim Loj: (L) 120cm X (W) 125cm X (H) 200cm

Net nyhav: 500Kg

Qhov hnyav tag nrho: 600Kg

* Kev tsim khoom thiab RPM tuaj yeem hloov kho los ntawm cov khoom sib txawv

FAQ:

Q: Koj qhov kev pabcuam shipping yog dab tsi?

A: Peb tuaj yeem muab kev pabcuam rau nkoj nkoj, kev sib sau khoom, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.

Q: Txoj kev shipping twg koj tuaj yeem muab tau?

A: Peb tuaj yeem muab kev xa khoom los ntawm hiav txwv, los ntawm huab cua thiab nthuav qhia.

Q: Koj cov khoom puas tau raug xa tawm?

A: Yog lawm, lawv tau raug xa tawm mus rau Russia, Panama, Iran, Nyab Laj, Pakistan thiab lwm yam.

Q: Koj puas nrhiav tus neeg sawv cev?

Yog, peb tab tom nrhiav tus neeg sawv cev thoob plaws ntiaj teb, thov hu rau peb kom sib tham ntxiv.

Peb Cov Kev Pabcuam

1. Kev paub zoo ntawm kev ua lag luam sib txawv tuaj yeem ua tau raws li qhov tshwj xeeb.

2. Cov chaw tsim khoom tiag nrog peb lub Hoobkas nyob hauv No.202 Tashan Road, Fotang Town, Yiwu City, Suav.

3. Cov kws tshaj lij kev ua haujlwm muaj zog kom ntseeg tau tias tsim cov khoom zoo tshaj plaws.

4. Kev tswj tus nqi tshwj xeeb xyuas kom muab tus nqi zoo tshaj plaws.
