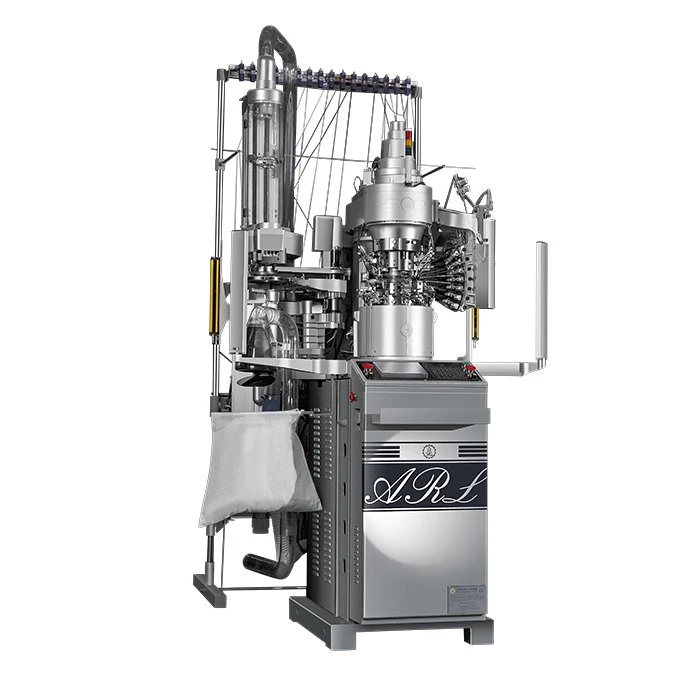

Ob Xim Elastic Socks Knitting Tshuab

F-601 Lub tshuab ua haujlwm siab lub tog raj kheej ob lub tog raj kheej tsis siv neeg thom khwm txuas tshuab, tuaj yeem xaws ntau yam thom khwm rau cov txiv neej, poj niam, menyuam yaus, nrog rau cov poj niam thom khwm, thom khwm pob txha, panty-hose, thiab muaj peev xwm tsim tau yooj yim, tav, txuas- txuas, ob xim elastic, multilayer tav saum thiab tucking kev ntxhib los mos. Cov thom khwm ntau lawm tshuab muaj peev xwm xaws ib xim ntawm tib kab. 7 kev sib txuas ntawm yam feeder hauv cov xim sib txawv tuaj yeem ua haujlwm tsis tu ncua alternating knitting. Cov thom khwm knitting tshuab yog yooj yim rau kev saib xyuas thiab khav theeb kev ua haujlwm ruaj khov, thiab cov khoom lag luam siab, thiab siv Internet ntse tshuab nyiaj ntsuab los ua kom tiav tag nrho cov hosiery weaving, hosiery tig, xaws thiab lwm yam txheej txheem hauv ib lub tshuab, uas pom cov txheej txheem ntau lawm.

Technical feature:

1. Drumless, tag nrho tsis siv neeg hluav taws xob tswj qhov system;

2. Electro-pneumatic yam ntiv tes, ntsia liaj qhov rooj cams tswj;

3. Ac servo lub cev muaj zog thiab tsav tsheb;

4. Cov khoom nyob rau hauv ib lub voj voog ntawm 1 xim, mus txog 6inter xim nyob rau hauv tag nrho;

5. Kev txhawb nqa rau pob taws;

6. Ntau yam sensor rau obstacles (xov paj inlet, xov paj txiav, defected koob, selector txiav, hluav taws xob teeb meem);

7. Tsis siv neeg lubricant ntaus ntawv;

8. Hluav taws xob-pneumatic cam, khaws thiab khaws cia;

9. Tsis siv neeg tig lub thom khwm ntaus ntawv;

10. "Y" lossis "W" cov ntaub ntawv ntawm pob taws;

11. Kev sib cais ntawm cov thom khwm mus rau hauv qab kev taw qhia thiab tsis siv neeg tig cov thom khwm; (Qhov kev ua haujlwm no tuaj yeem siv yam tsis muaj ntiv taw kaw);

12. Independent automatic alignment head device.

Cov yam ntxwv ntawm cov qauv tsim system:

1. Ntau hom lus tso tawm rau ntawm LCD

2. USB system

3. High efficiency thiab meej actuator (8 kauj ruam)

4. Kev ntsuas tus kheej ntawm tus actuator

5. Kev ntsuas tus kheej ntawm txhua qhov ua haujlwm hluav taws xob

6. Sole qauv xaiv

7. Zaub ntawm kev tsim khoom

8. Khaws cov qauv tsim & style (Chain data)

Specifications:

Lub tog raj kheej taub: 4 nti

Koob ntau: 108N ~ 176N

Kev hloov pauv: 260rpm ~ 320rpm

Lub cev muaj zog: 6.5Kw

Actuator: 5.5-6Piezo hluav taws xob ceramic actuators

Fais fab mov: 3P-AC 220V ~ 380V 50/60Hz

Tshuab Loj: (L) 100cm X (W) 160cm X (H) 235cm

Ntim Loj: (L) 120cm X (W) 125cm X (H) 200cm

Net nyhav: 500Kg

Qhov hnyav tag nrho: 600Kg

* Kev tsim khoom thiab RPM tuaj yeem hloov kho los ntawm cov khoom sib txawv

FAQ:

Q: Muaj pes tsawg tus neeg ua haujlwm hauv koj lub hoobkas?

A: 120 tus neeg ua haujlwm.

Q: Lub sijhawm khoom xa tuaj rau ntau lawm yog dab tsi?

A: Txog 25 hnub.

Q: Koj puas muaj kev pab cuam tom qab muag?

A: Yog, Kev pab cuam tom qab muag zoo, tuav cov neeg siv khoom tsis txaus siab thiab daws teeb meem rau cov neeg siv khoom.

Q: Koj puas tuaj yeem npaj cov khoom xa tuaj rau cov neeg siv khoom?

A: Yog, kev paub zoo heev hauv kev xa khoom, peb ua haujlwm nrog cov tuam txhab xa khoom txhim khu kev qha tshaj plaws hauv ntiaj teb.

Peb Qhov Kev Pabcuam

1. Ntau tshaj kev pabcuam hauv thom khwm machinery khoom exporting teb

2. Muaj peev xwm ua tau zoo dua

3. Ntau lub sijhawm them nyiaj xaiv: Fob / CIF / lC

4. Cov khoom zoo / cov khoom siv zoo / cov nqi sib tw

5. Kev txiav txim me me muaj

6. Teb ceev ceev

7. Muaj kev nyab xeeb thiab kev thauj mus los sai dua

Cim npe nrov: ob xim elastic thom khwm knitting tshuab
