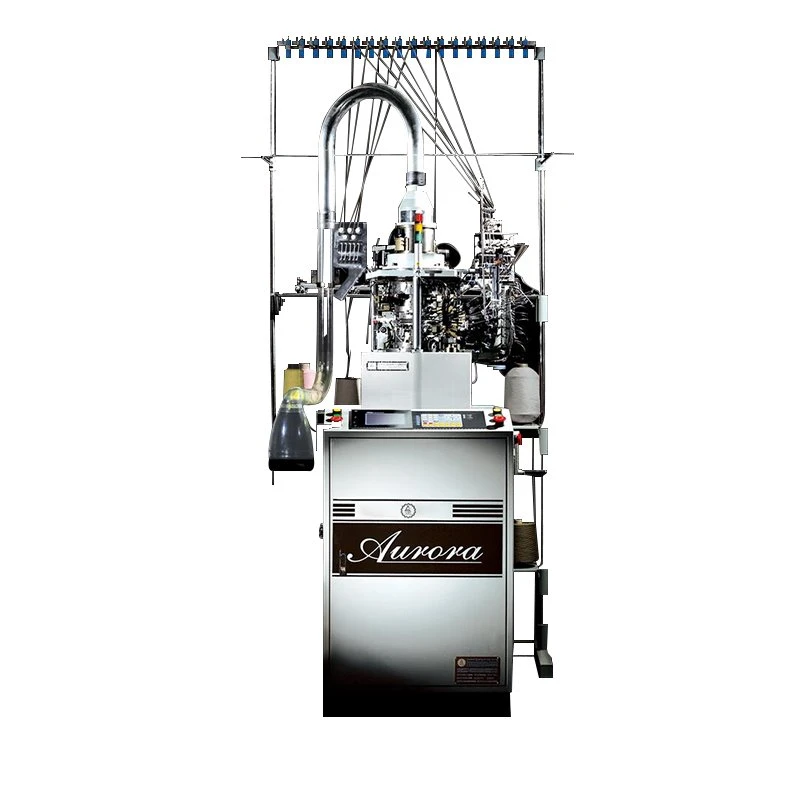

Computerized Jacquard Ob Lub tog raj kheej thom khwm Knitting Tshuab

J-2F2 Lub tshuab computer tsis siv neeg hnyav hnyav jacquard Socks Knitting Tshuab, muaj cov qauv yooj yim thiab ua haujlwm. Tuam Tshoj selector rau koob xaiv yog saws. Tus naj npawb ntawm cov koob tuaj yeem hloov pauv ntawm 42N mus rau 96N raws li cov neeg siv khoom xav tau nrog tsuas yog fittings ntawm cov khoom txav tau hloov. Niaj hnub thom khwm knitting tshuab tuaj yeem xaws ntau yam thom khwm rau cov txiv neej, poj niam, menyuam yaus, lub hauv caug siv cov ntaub ntawv los ntawm cov xov paj, luav plaub hau thiab pashm. Nws muaj peev xwm xaws 2 xim ntawm tib kab. 8 kev sib txuas ntawm yam feeder hauv cov xim sib txawv tuaj yeem ua haujlwm tsis tu ncua alternating knitting. Jacquard Socks Tshuab yog qhov yooj yim rau kev saib xyuas thiab khav theeb kev ua haujlwm ruaj khov, thiab ua haujlwm siab.

Aurora lub jacquard thom khwm knitting tshuab yog tag nrho cov tsim los ntawm peb R & D pab neeg uas tau tshwj xeeb nyob rau hauv textile machinery rau ntau xyoo lawm thiab muaj ib tug loj tus naj npawb ntawm cov teb chaws patents. Cov thom khwm niaj hnub knitting tshuab uas tsim los ntawm peb yog lntelligent, npaum, txuag hluav taws xob thiab ib puag ncig tus phooj ywg, uas kuj tau siv ntau lub teb chaws invented patents thiab ib co tswv yim patents. Lub tuam txhab muaj sophisticated ua cov cuab yeej thiab cov cuab yeej kuaj superb txheej txheem ntws los xyuas kom meej tias ua high-precision qhov chaw. Txhua yam khoom tshiab raws li peb cov kev cai nruj heev rau cov ntsiab lus. Txhua txoj kev hloov kho yog los tsim kom muaj txiaj ntsig siv ntau dua rau cov neeg siv khoom.

Technical feature:

1. Drumless, tag nrho tsis siv neeg hluav taws xob tswj qhov system;

2. Electro-pneumatic yam ntiv tes, ntsia liaj qhov rooj cams tswj;

3. Ac servo lub cev muaj zog thiab tsav tsheb;

4. Txais ob txoj kev tsheb thauj khoom noj khoom haus, 9 shuttles nyob rau hauv tag nrho, 2 pawg ntawm txiab;

5. 8 xim sib txawv yarns pauv knitting tsis tu ncua;

6. Ntau yam sensor rau obstacles (yarn inlet, yam txiav, defected koob, selector txiav, hluav taws xob teeb meem);

7. Tsis siv neeg lubricant ntaus ntawv;

8. downward sock discharging muaj nuj nqi, thiab tsis siv neeg thom khwm tig;

9. Muaj peev xwm xaws ob xim ntawm tib kab thiab elastic lwm txoj;

10. Jacquard daim duab peb sab cam kev twb kev txuas los ntawm tag nrho cov nyob rau hauv ib tug qauv, suab nrov yuav txo tau;

11. "Y" lossis "W" cov ntaub ntawv ntawm pob taws;

12. Reinforcement rau pob taws & ntiv taw.

Cov yam ntxwv ntawm cov qauv tsim system:

1. Ntau hom lus tso tawm rau ntawm LCD

2. USB system

3. High efficiency thiab meej actuator (8 kauj ruam)

4. Kev ntsuas tus kheej ntawm tus actuator

5. Kev ntsuas tus kheej ntawm txhua qhov ua haujlwm hluav taws xob

6. Xaiv kev ua haujlwm ntawm cov qauv hauv paus muaj nyob

7. Zaub ntawm cov khoom kom muaj nuj nqis

8. Khaws cov qauv tsim & style (Chain data)

Siv cov xwm txheej ntawm cov qauv tsim qauv:

1. Khoos phib tawj kho vajtse: Pentium 4

2. OS: windows XP

3. HDD: 10GB saum toj no

4. Ram: 128MB saum toj no

5. Vga Ram: 16 MB saum toj no

* Cov yam ntxwv tuaj yeem hloov pauv yam tsis tau ceeb toom rau kev txhim kho tshuab

Specifications:

Lub tog raj kheej taub: 4.5 nti

Tus naj npawb ntawm koob: 42N ~ 96N

Kev hloov pauv: 180rpm ~ 240rpm

Lub cev muaj zog: 1.3Kw ~ 1.5Kw

Actuator: 5.5-6Piezo hluav taws xob ceramic actuators

Fais fab mov: 3P-AC 220V ~ 380V 50/60Hz

Tshuab Loj: (L) 100cm X (W) 160cm X (H) 235cm

Ntim Loj: (L) 100cm X (W) 100cm X (H) 200cm

Net nyhav: 400Kg

Qhov hnyav tag nrho: 450Kg

* Kev tsim khoom thiab kev sib hloov ceev tuaj yeem hloov kho los ntawm hom xov paj.

FAQ:

Q: Koj lub Hoobkas nyob qhov twg?

A: Peb lub tuam txhab chaw nyob yog: No.202 Tashan Road Fotang Town, Yiwu City, Suav.

Q: Koj puas muaj kev pab cuam tom qab muag?

A: Peb muaj kev pabcuam tomqab muag tiav, raws sijhawm los daws cov teebmeem ntawm cov neeg siv khoom

Q: Koj puas tuaj yeem tsim conveyor raws li peb cov kev xav tau?

A: Yog, OEM muaj. Peb muaj cov kws tshaj lij pab neeg ua txhua yam koj xav tau los ntawm peb.

Peb qhov kev pabcuam

1. Muab cov qauv tsim thiab kev daws teeb meem;

2. Kev taw qhia kev cog ntoo tshiab;

3. Kev cob qhia kev cob qhia thiab kev cob qhia ntawm qhov chaw raws li daim ntawv cog lus;

4. Muab khoom siv rau txhua lub sijhawm;

5. Tele-technical kev sab laj thiab kev pabcuam;

6. Lwm cov kev pabcuam tshwj xeeb raws li tus neeg yuav tsum tau ua.
